> 90 % efficiency< 50 fs output80 W

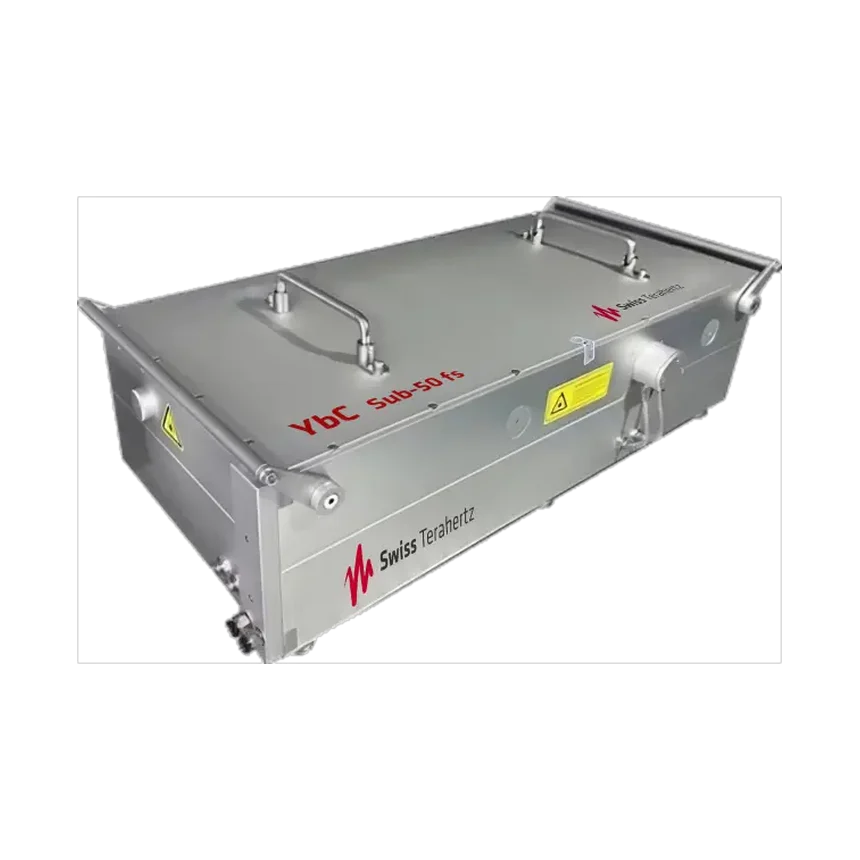

Systems · Yb Pulse Compressor
YbC
high-energy Yb pulse compressor
Takes 150 fs-1 ps in at 1030 ± 10 nm and puts < 50 fs out. Efficiency above 90 %, at up to 80 W of input average power. A real-time beam quality monitor holds the output power to RMS = 0.38 % /26h.
Input pulse150 fs – 1 ps
Output pulse< 50 fs
Efficiency> 90 %
Max avg power80 W
Features
- High transmission efficiency
- Short pulse output
- High stability, using a real-time beam quality monitor
Contact
Ships from Zürich
Lead time on request
Lead time on request
Online prices are for budgetary purposes only. Exact prices can be up to 20% higher depending on the current exchange rate — please request a formal quotation.
- ▸ Applications: Terahertz generation from BNA and lithium niobate crystals · Nonlinear optics
- ▸ Example Output Pulse Width: FWHM = 28.3 fs
- ▸ Output Power Stability: RMS = 0.38 % /26h
Specifications
| Example output pulse width | FWHM = 28.3 fs |
|---|---|
| Output power stability | RMS = 0.38 % /26h |
Specifications
| Input Pulse Duration | 150 fs-1 ps | 150 fs-1 ps |
| Input Pulse Energy | 20-400 μJ | 400-2000 μJ |
| Input Central Wavelength | 1030 ± 10 nm | 1030 ± 10 nm |
| Maximum Input Average Power | 80 W | 80 W |
| Compression Factor | 5-15 | 5-15 |
| Compressor Efficiency | > 90 % | > 90 % |
| Output Pulse Duration | < 50 fs | < 50 fs |
| Dimensions | 500 x 350 x 150 mm | 500 x 350 x 150 mm |
