DSTMS Organic Crystal

Name: DSTMS Organic Crystal
Brand: Swiss Terahertz

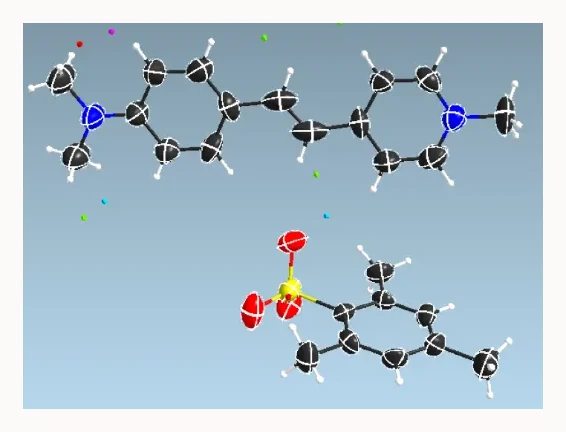

4-N,N-dimethylamino-4’-N’-methyl-stilbazolium 2,4,6-trimethylbenzenesulfonate

DSTMS generates and detects terahertz. A 34 mJ near-infrared OPA pump gives 85 MV/cm. Its optical-to-THz energy efficiency is slightly higher than DAST; DAST keeps the broader spectrum and the higher damage threshold.

PumpFiber · OPA · OPCPA

Input34 mJ OPA NIR

THz output85 MV/cm

Functions

THz generator and detector
Multi-THz generator
Second harmonic generator

Contact

1-year full warranty

Ships from Zürich
Lead time on request

Request a quotation Email an engineer

Online prices are for budgetary purposes only. Exact prices can be up to 20% higher depending on the current exchange rate — please request a formal quotation.

Main advantages — Superior performance to the classical THz generators, ZnTe and lithium niobate, from Ti:Sa 800 nm lasers.

▸ State of the art: intense nonlinear terahertz spectroscopy.
▸ Literature: J. Opt. Soc. Am. B 24, 2556 (2007); J. Opt. Soc. Am. B 32, 1078 (2015); Opt. Lett. 42, 129 (2017); Nat. Commun. 6, 5976 (2015); Nat. Commun. 6, 8439 (2015)

Laser Requirements & Expected Output

Operates with	Telecomm fiber · OPA · OPCPA
Expected input	34 mJ OPA near-infrared
Expected output THz	85 MV/cm

Comparison With Sister DAST Crystal


Optical properties	DSTMS and DAST have similar optical properties
Efficiency	DSTMS optical to THz energy efficiency is slightly higher than DAST
Peak field	DAST could show higher peak electric field because of the broader spectrum than DSTMS
Damage threshold	DAST has higher damage threshold than DSTMS
