85 MV/cmGenerator and detector
Components
OH1 Organic Crystal
2-[3-(4-hydroxystyryl)-5,5-dimethylcyclohex-2-enylidene] malononitrile
OH1 generates and detects terahertz, and doubles as a second harmonic generator. A 34 mJ near-infrared OPA pump gives 85 MV/cm. It is used for intense nonlinear spectroscopy and for broadband linear spectroscopy.
Input34 mJ OPA NIR
THz output85 MV/cm
Functions
- THz generator and detector
- Multi-THz generator
- Second harmonic generator
Contact
1-year full warranty
Ships from Zürich
Lead time on request
Lead time on request
Online prices are for budgetary purposes only. Exact prices can be up to 20% higher depending on the current exchange rate — please request a formal quotation.
Related products — BNA is a new crystal operating at Ti:Sa 800 nm, with generation properties similar to OH1.
- ▸ Literature: Nat. Commun. 6, 5976 (2015); Opt. Express 34, 231974 (2015)

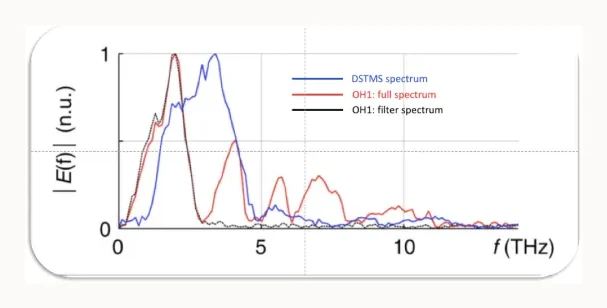

Expected Output
| Expected input | 34 mJ OPA near-infrared |
|---|---|
| Expected output THz | 85 MV/cm |
Applications
| 1 — Intense Nonlinear Spectroscopy | Comparison with conventional ZnTe sources |
| 2 — Broadband Linear Spectroscopy | Comparison with conventional Lithium Niobate sources |
Documentation & figures
Applications
