95 MV/cmHighest damage thresholdTHz/MIR generator
Components
DAST Organic Crystal

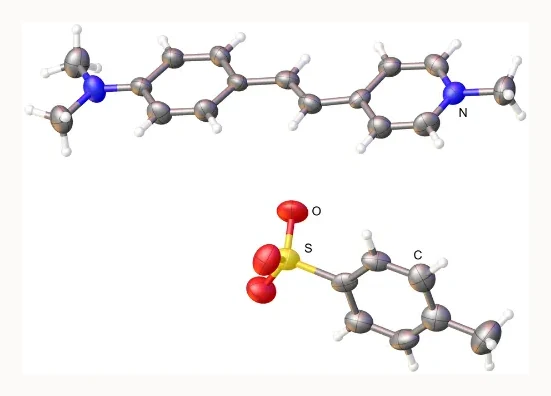

4-N,N-dimethylamino-4′-N′-methyl-stilbazolium tosylate
DAST generates and detects across the terahertz and the mid-infrared. A 4 mJ near-infrared OPA pump gives 95 MV/cm. It runs from telecomm fiber, OPA and OPCPA sources.
PumpFiber · OPA · OPCPA
Input4 mJ OPA NIR
THz output95 MV/cm
Functions
- THz/MIR generator and detector
- Multi-THz generator
- Second harmonic generator
Contact
1-year full warranty
Ships from Zürich
Lead time on request
Lead time on request
Online prices are for budgetary purposes only. Exact prices can be up to 20% higher depending on the current exchange rate — please request a formal quotation.
- ▸ State of the art: intense nonlinear terahertz spectroscopy.
- ▸ Literature: Opt. Express 18, 23621 (2010); APL Photonics 2, 036106 (2017); Nature Photonics 11, 331 (2017); Nat. Commun. 6, 5976 (2015); Opt. Express 20, 2850 (2012); Nat. Commun. 6, 8439 (2015)
Laser Requirements & Expected Output
| Operates with | Telecomm fiber · OPA · OPCPA |
|---|---|
| Expected input | 4 mJ OPA near-infrared |
| Expected output THz | 95 MV/cm |

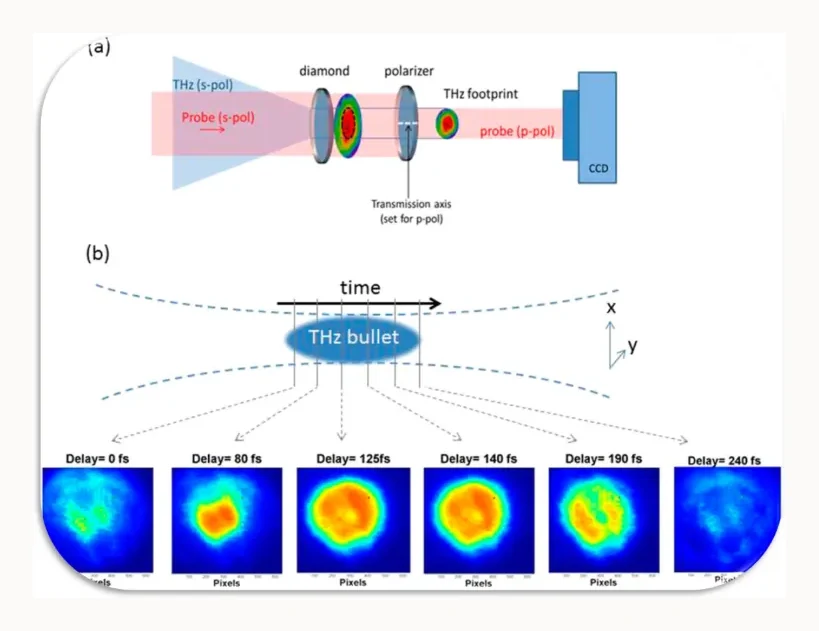

Documentation & figures
Applications
