Rigi Camera

Name: Rigi Camera
Brand: Swiss Terahertz

uncooled real-time THz imager

Uncooled micro-bolometer. Coin-sized. Sees from 1 to 18 THz. The world’s most sensitive and most compact THz camera, and the world’s first THz megapixel camera. Eleven models, from 80×80 to 1280×1024 pixels, pixel pitch down to 15 µm. Starting from 2,8k€.

Array80×80 – 1920×1080 px

Pixel pitchfrom 15 µm

NEP / pixel< 1.5 pW/Hz

Spectral range< 1 – 18 THz

Records held across the series

Smallest pixel: 15 µm
Smallest camera: coin size
Largest active area: > 29 x 16 mm
Largest array: > 1 M pixel

Starting from 2,8k€

Rigi S1 — OEM only

Ships from Zürich
Lead time on request

Request a quotation Email an engineer

Online prices are for budgetary purposes only. Exact prices can be up to 20% higher depending on the current exchange rate — please request a formal quotation.

▸ Fitted with an IR-blocking THz filter.

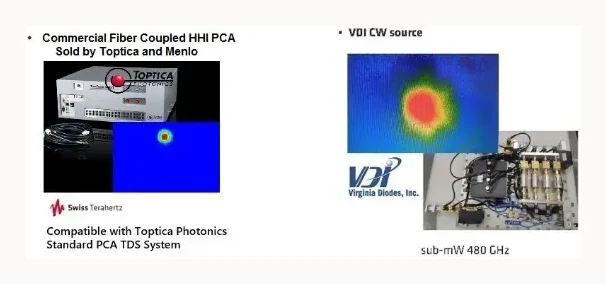

▸ Application example: a simple THz imaging setup built from a Toptica PCA and a RIGI camera.
▸ Exclusive distributor for Japanese customers: フジトク株式会社 (Fujitok Co., Ltd.).

Specifications of the RIGI series

Detector	Uncooled FPA micro-bolometer array
Pitch	Varies starting from 15 µm
Array size	Varies from 80 x 80 pixels to 1920 x 1080 pixels
NEP per pixel	< 1.5 pW/Hz at 4.6 THz
Sensitivity	< 1 THz : 18 THz
Frame rate	10 Hz, 30 Hz, 60 Hz
Power supply	USB-powered
Digital Output	Digital: USB 3.0
Weight	< 200 g (small models)
Dimensions	Approx. W 3 cm x H 3 cm x D 4 cm (small models)

Models & pricing


S Series (Objective Lens: +5k EUR)
Rigi S1	80x80	25 µm	€2,800 (OEM Only)
Rigi S2	160x120	25 µm	Contact
Rigi S3	160x120	17 µm	Contact
Rigi S4n	200x200	100 µm	Contact
Rigi S5n	420x420	160 µm	Contact
M Series (Objective Lens: Contact)
Rigi M1	384x288	25 µm	Contact
Rigi M2	640x480	17 µm	Contact
Rigi M3	384x288	35 µm	Contact
Rigi M4n	384x288	60 µm	Contact
L Series (Objective Lens: Contact)
Rigi L2	1280x1024	15 µm	Contact
XL Series (Objective Lens: Contact)
Rigi XL2n	1280x1024	12 µm	Contact
