THz Detector Crystals
electro-optic detection crystals

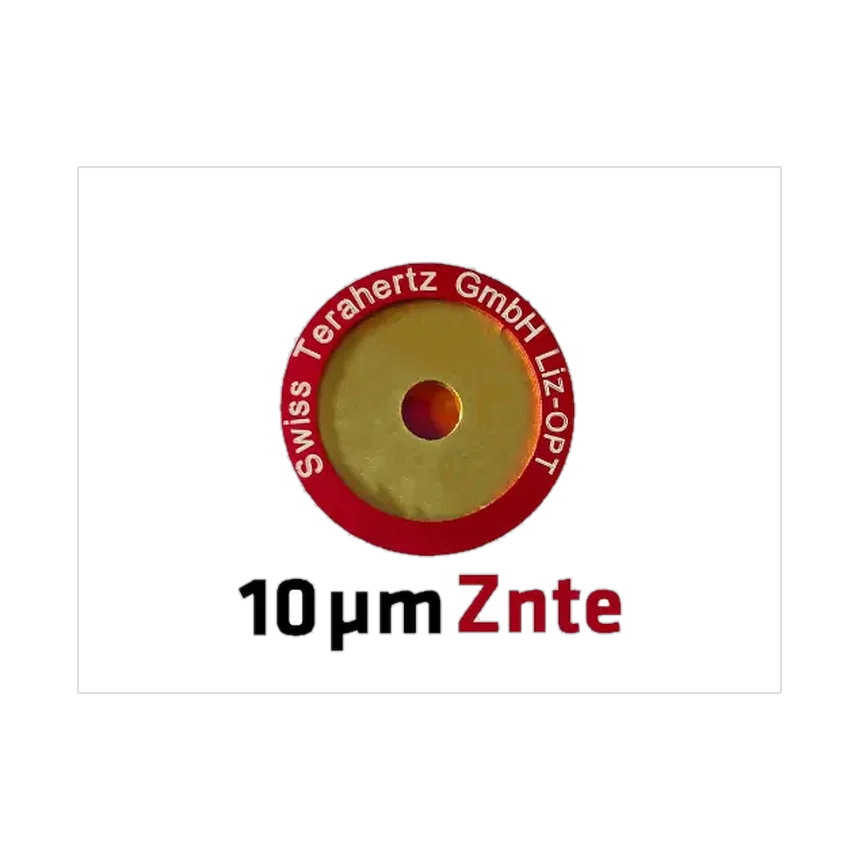

Electro-optic crystals for terahertz detection, supplied mounted. Feel free to contact us for a customized order for different or larger areas.
Contact
Ships from Zürich
Lead time on request
Lead time on request
Online prices are for budgetary purposes only. Exact prices can be up to 20% higher depending on the current exchange rate — please request a formal quotation.
Configure & price
Choose your specification — the model number and price appear immediately.
Specifications
| Ordering | Customized order for different/larger areas on request |
|---|
Detector crystals — models and pricing
| ZnTe crystal emitter / detector | |||
| ZNTE1 | 0.01 | Custom | Contact |
| ZNTE2 | 0.02 | Custom | Contact |
| ZNTE3 | 0.03 | Custom | Contact |
| ZNTE5 | 0.05 | 10 mm | Contact |
| ZNTE10 | 0.1 | 10 mm | Contact |
| ZNTE215 | 0.15 | 10 mm | Contact |
| ZNTE20 | 0.2 | 10 mm | Contact |
| ZNTE50 | 0.5 | 10 mm | Contact |
| ZNTE100 | 1 | 10 mm | Contact |
| ZNTE200 | 2 | 10 mm | Contact |
| ZNTE300 | 3 | 10 mm | Contact |
| ZNTE optically contacted | Custom | Custom | Contact |

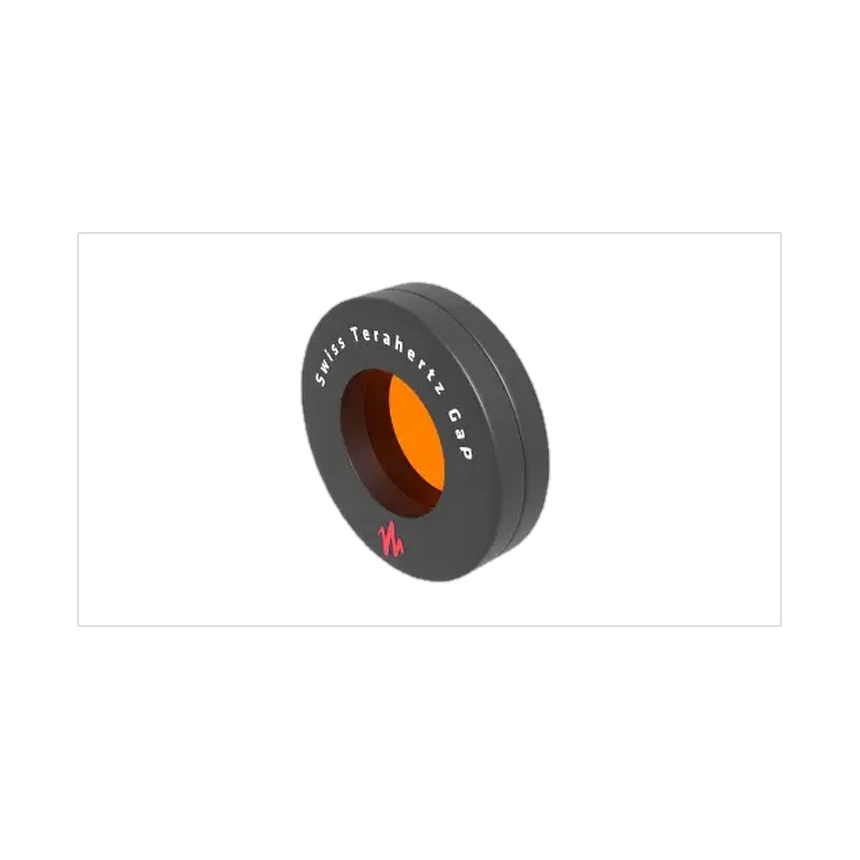

| GaP crystal emitter / detector | |||
| GaP3 | 0.03 | 5 mm | Contact |
| GaP5 | 0.05 | 10 mm | Contact |
| GaP10 | 0.1 | 10 mm | Contact |
| GaP20 | 0.2 | 10 mm | Contact |
| GaP30 | 0.3 | 10 mm | Contact |
| GaP50 | 0.5 | 10 mm | Contact |
| GaP100 | 1 | 10 mm | Contact |
| GaP200 | 2 | 10 mm | Contact |
| GaP300 | 3 | 10 mm | Contact |
| GaP optically contacted | Custom | Custom | Contact |
| Lithium Niobate crystal emitter / detector | |||
| Prism | Custom | Custom | Contact |
| Plate | Custom | Custom | Contact |
Source: Swiss Terahertz detector crystal price list.
