80/50 (S/D)HDPE and TPX
Optical Accessories
THz Lenses
HDPE Lens · TPX Lens
Terahertz lenses in HDPE and TPX. Surface finish 80/50 (S/D). Curvature held to +/- 0.01 mm, diameter to +/- 0.2 mm.
Surface finish80/50 (S/D)
Curvature tol.± 0.01 mm
Diameter tol.± 0.2 mm
MaterialsHDPE · TPX
from 60 Euro
HDPE, 25.4 mm
Ships from Zürich
Lead time on request
Lead time on request
Online prices are for budgetary purposes only. Exact prices can be up to 20% higher depending on the current exchange rate — please request a formal quotation.
Configure & price
Choose your specification — the model number and price appear immediately.
Specifications
| Surface finish | 80/50 (S/D) |
|---|---|
| Curvature Tolerance | +/- 0.01 mm |
| Diameter tolerance | +/- 0.2 mm |
| Materials | HDPE Lens, TPX Lens |

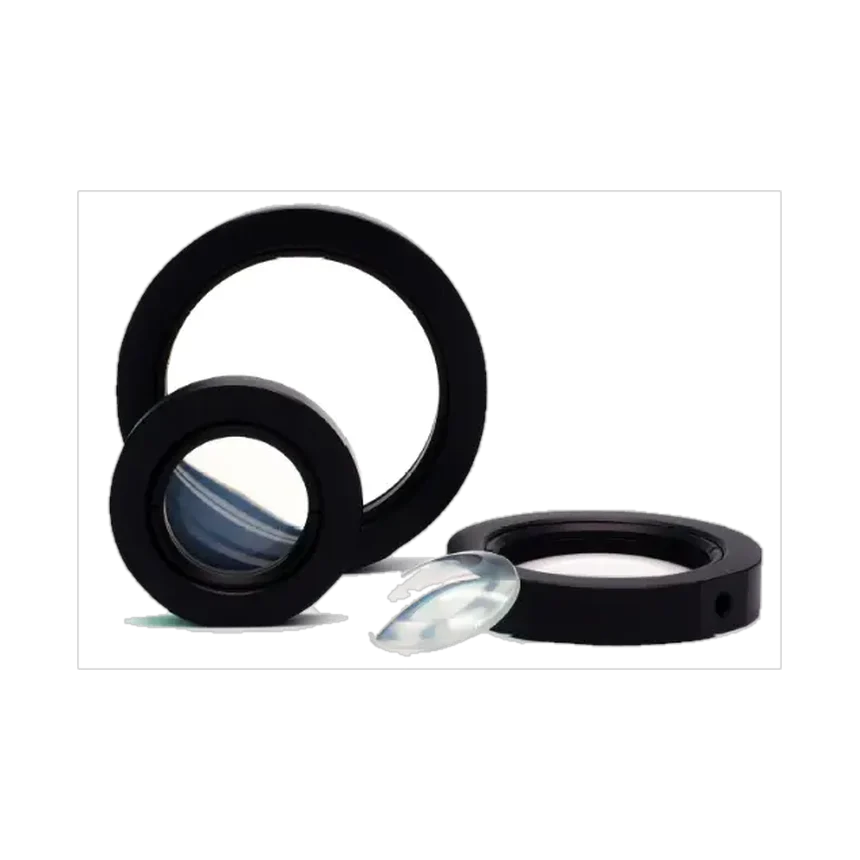

TPX lenses
| TPXLD10T100 | 25.4 | 10 | 280 |
| TPXLD10T150 | 25.4 | 15 | 150 |
| TPXLD10T250 | 25.4 | 25 | 150 |
| TPXLD10T325 | 25.4 | 32.5 | 150 |
| TPXLD10T350 | 25.4 | 35 | 150 |
| TPXLD10T500 | 25.4 | 50 | 150 |
| TPXLD10T650 | 25.4 | 65 | 150 |
| TPXLD10T750 | 25.4 | 75 | 160 |
| TPXLD10T1000 | 25.4 | 100 | 150 |
| TPXLD10T1200 | 25.4 | 120 | 150 |
| TPXLD10T1500 | 25.4 | 150 | 150 |
| TPXLD10T2000 | 25.4 | 200 | 150 |
| TPXLD10T2400 | 25.4 | 240 | 150 |
| TPXLD15T500 | 38.1 | 50 | 180 |
| TPXLD15T750 | 38.1 | 75 | 180 |
| TPXLD15T1500 | 38.1 | 150 | 180 |
| TPXLD15T2000 | 38.1 | 200 | 180 |
| TPXLD20T500 | 50.8 | 50 | 210 |
| TPXLD20T750 | 50.8 | 75 | 200 |
| TPXLD20T1000 | 50.8 | 100 | 200 |
| TPXLD20T1500 | 50.8 | 150 | 200 |
| TPXLD20T2000 | 50.8 | 200 | 200 |
| TPXLD20T4000 | 50.8 | 400 | 200 |
HDPE lenses
| HDPELD10T250 | 25.4 | 25 | 60 |
| HDPELD10T500 | 25.4 | 50 | 60 |
| HDPELD10T1000 | 25.4 | 100 | 60 |
| HDPELD10T1500 | 25.4 | 150 | 60 |
| HDPELD10T2000 | 25.4 | 200 | 60 |
| HDPELD15T500 | 38.1 | 50 | 70 |
| HDPELD15T750 | 38.1 | 75 | 70 |
| HDPELD15T1000 | 38.1 | 100 | 70 |
| HDPELD15T1500 | 38.1 | 150 | 70 |
| HDPELD15T2000 | 38.1 | 200 | 70 |
| HDPELD20T500 | 50.8 | 50 | 80 |
| HDPELD20T1000 | 50.8 | 100 | 80 |
| HDPELD20T1500 | 50.8 | 150 | 80 |
| HDPELD20T2000 | 50.8 | 200 | 80 |
| HDPELD30T1000 | 76.2 | 100 | 110 |
| HDPELD30T2000 | 76.2 | 200 | 110 |
| HDPELD40T1000 | 101.6 | 100 | 170 |
| HDPELD40T2000 | 101.6 | 200 | 170 |
| HDPELD40T4000 | 101.6 | 400 | 170 |
