Organic crystal emission
95 MV/cmUp to 65 mm apertureHighest damage threshold1-year full warranty
Components · Most efficient THz emitters, 95 MV/cm
Organic Crystals (Emitters)
BNA · DAST · OH1 · DSTMS
Four crystals — BNA, DAST, OH1 and DSTMS. Apertures up to 65 mm, and a higher damage threshold than any crystal on the market. Our crystals are behind the world’s most intense THz source. Every one ships with a 1-year full warranty and 30 days to send it back.
CrystalsBNA, DAST, OH1, DSTMS
Max apertureup to 65 mm
Warranty1 year, full
Returns30 days
Features
- Sold with a 1-year full warranty
- Behind the world’s most intense THz source
- 30-day money back if it does not meet your expectations, even if you already damaged it
- Higher damage threshold than any existing crystal in the market
- Aperture sizes up to 65 mm
- On-site installation and training can be arranged
Contact
1-year full warranty
Ships from Zürich
Lead time on request
Lead time on request
Online prices are for budgetary purposes only. Exact prices can be up to 20% higher depending on the current exchange rate — please request a formal quotation.
Specifications
| Crystals | BNA, DAST, OH1, DSTMS |
|---|---|
| Maximum aperture | Up to 65 mm |
| Warranty | 1-year full warranty |
| Returns | 30-day money back |
Crystals in this family
Components
BNA Organic Crystal
N-benzyl-2-methyl-4-nitroaniline
PumpTi:Sa · OPA · 1030 nm
Input1 mJ @ 800 nm
ContactDetails →
Components
DAST Organic Crystal
4-N,N-dimethylamino-4′-N′-methyl-stilbazolium tosylate
PumpFiber · OPA · OPCPA
Input4 mJ OPA NIR
ContactDetails →
Components
OH1 Organic Crystal
2-[3-(4-hydroxystyryl)-5,5-dimethylcyclohex-2-enylidene] malononitrile
Input34 mJ OPA NIR
THz output85 MV/cm
ContactDetails →
Components
DSTMS Organic Crystal
4-N,N-dimethylamino-4’-N’-methyl-stilbazolium 2,4,6-trimethylbenzenesulfonate
PumpFiber · OPA · OPCPA
Input34 mJ OPA NIR
ContactDetails →

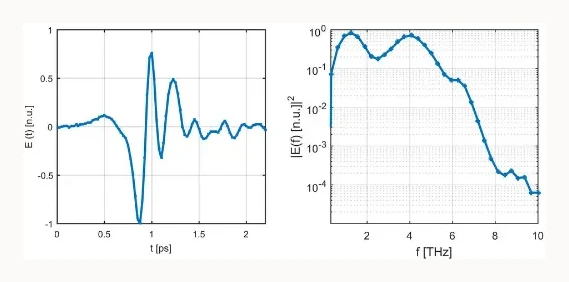

Documentation & figures
