World’s most intenseDiffraction limited focusingOrganic crystal emitter
Systems · World’s most intense THz source
Tera-Bullet Intense THz Spectrometer
intense-field R&D spectrometer
The design of the world’s most intense THz system. Broadband, diffraction limited focusing. The emitter is a Swiss Terahertz organic crystal.
See price list
Budgetary — request a formal quotation
Ships from Zürich
Lead time on request
Lead time on request
Online prices are for budgetary purposes only. Exact prices can be up to 20% higher depending on the current exchange rate — please request a formal quotation.
Due to the recent volatility in the Euro exchange rate, online prices are for budgetary purposes only. Exact prices can be up to 20% higher than the online prices depending on the current exchange rate. Please request a formal quotation for the exact price.
Configure & price
Choose your specification — the model number and price appear immediately.
Specifications
| Design | Broadband diffraction limited focusing |
|---|---|
| Emitter | Swiss Terahertz organic crystals |
| Page sections | Example Output · Laser Requirements · Price List · Our Crystal Technology in Literature |

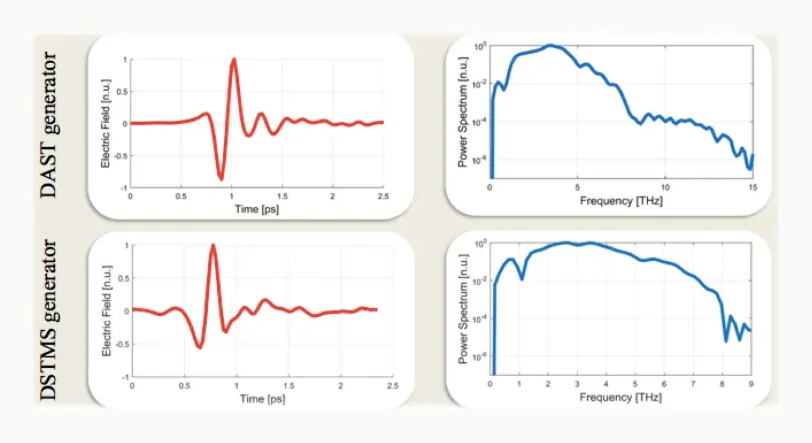

Output performance
| < 3 kHz — input 1600–1200 nm, 50 fs (FWHM) | |||
| < 3 kHz | 400 µJ (1 kHz) | > 8 µJ | > 22 MV/cm |
| < 3 kHz | 2 mJ (1 kHz) | > 40 µJ | > 50 MV/cm |
| < 3 kHz | 10 mJ (1 kHz) | > 200 µJ | > 120 MV/cm |
| 1 kHz — input 800 nm, 80 fs (FWHM) | |||
| 1 kHz | 400 µJ | > 0.4 µJ | > 0.4 MV/cm |
| 1 kHz | 2 mJ | > 2 µJ | > 1 MV/cm |
| 1 kHz | 10 mJ | > 10 µJ | > 3 MV/cm |
| 100 Hz — input 800 nm, 80 fs (FWHM) | |||
| 100 Hz | 2 mJ | > 4 µJ | > 2 MV/cm |
| 100 Hz | 20 mJ | > 40 µJ | > 6 MV/cm |
Pricing
| 1 kHz — input 800 nm, 80 fs (FWHM) | |||
| 1 kHz | 400 µJ | €9,000 | €19,000 |
| 1 kHz | 2 mJ | €13,000 | €19,000 |
| 1 kHz | 10 mJ | €21,000 | €19,000 |
| 1 kHz — input 1500–1200 nm, 50 fs (FWHM) | |||
| 1 kHz | 400 µJ | €12,000 | €19,000 |
| 1 kHz | 2 mJ | €19,000 | €19,000 |
| 100 Hz — input 800 nm, 80 fs (FWHM) | |||
| 100 Hz | 2 mJ | €11,000 | €19,000 |
| 100 Hz | 20 mJ | €27,000 | €19,000 |
| 100 Hz — input 1500–1200 nm, 50 fs (FWHM) | |||
| 100 Hz | 2 mJ | €16,000 | €19,000 |
| 100 Hz | 20 mJ | €39,000 | €19,000 |
Acquisition kit is priced separately and is the same for every configuration.
