Filtros Terahertz
Band pass BPF · Band stop BSF · Low pass LPF · High pass HPF
Filtros passa-banda, rejeita-banda, passa-baixa e passa-alta para terahertz. Transmissão de pico > 70 %, tipicamente > 90 %. Frequência central mantida em < 5 %, personalizável para < 1 %, e largura de banda < 30 %, personalizável para < 1 %. Tamanhos de até 150 mm, a partir de 100 Euro para um Tipo I de 10 mm.
Prazo de entrega sob consulta
Os preços on-line têm caráter apenas orientativo. Os preços exatos podem ser até 20% mais altos conforme a taxa de câmbio vigente — solicite uma cotação formal.
Four filter families, all metal mesh: **band pass (BPF)** for isolating one line, **band stop (BSF)** for rejecting one, **low pass (LPF)** for cutting everything above a frequency, and **high pass (HPF)** for cutting everything below it. Peak transmission is above 70 % and typically better than 90 %.
Centre frequency is held to within 5 % as standard and can be specified to better than 1 %; bandwidth is under 30 % as standard and can be narrowed below 1 %. Clear apertures run to 150 mm. Anything outside the standard range is made to order — tell us the frequency, the width and the aperture you need.
Every curve in the figures below is a measurement, not a model. The low-pass data was taken on a Perkin-Elmer FTIR spectrometer with each sample scan ratioed against its own open-beam reference; where a second trace appears above the filter curve, that is the reference.

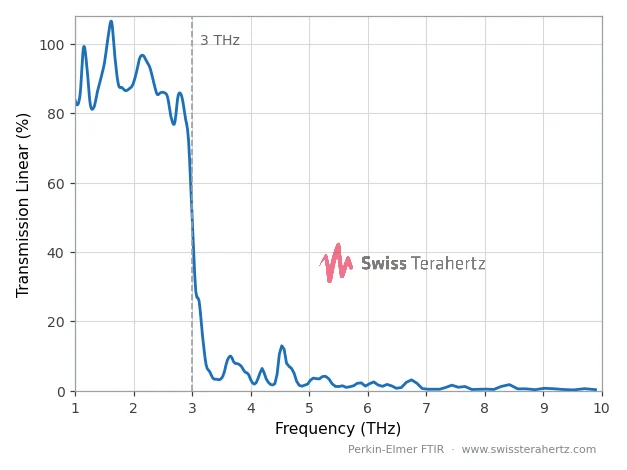

- ▸ **Low pass, 3 THz type** — measured half-power cut-off **3.0 THz**, passband 87 %, blocking 1.4 % (−18.5 dB) median from 3.6 to 24 THz.

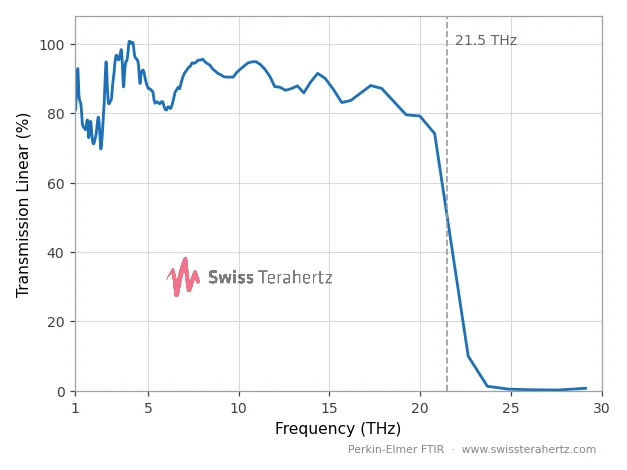

- ▸ **Low pass, 20 THz type** — measured half-power cut-off **21.5 THz**, passband 83 %, blocking 0.5 % median from 23 to 30 THz.
- ▸ Filter designations below are nominal. The measured cut-off of a mesh filter sits a little above the name it is sold under; both numbers are given so there is no ambiguity.
Escolha sua especificação — o número do modelo e o preço aparecem imediatamente.
| Transmissão de pico | > 70 % Típ. > 90 % |
|---|---|
| Tolerância na frequência central | < 5 % personalizável < 1 % |
| Largura de banda | < 30 %. Personalizável < 1 % |
| Tamanho | up to 150 mm |
| Type I | Passa-banda (BPF) | < 3 THz | 10 mm — 100 Euro · 19 mm — 400 Euro · > 19 mm — consultar |
| Type II | Passa-banda (BPF) | 3 – 30 THz | Contato |
| Type III | Band pass (BPF), high rejection | — | Contato |
| Type IV | Passa-baixa (LPF) | measured examples at 3, 9.5 and 20 THz | Contato |
| — | Rejeita-banda (BSF) | made to order | Contato |
| — | Passa-alta (HPF) | made to order | Contato |
